Basic Parameters and Main Dimensions of Magnetic Couplings:

• A Series



  Model	Torque(NM)	Dimensions(mm)
  		Inner rotor			Outer rotor				Isolation units				Other

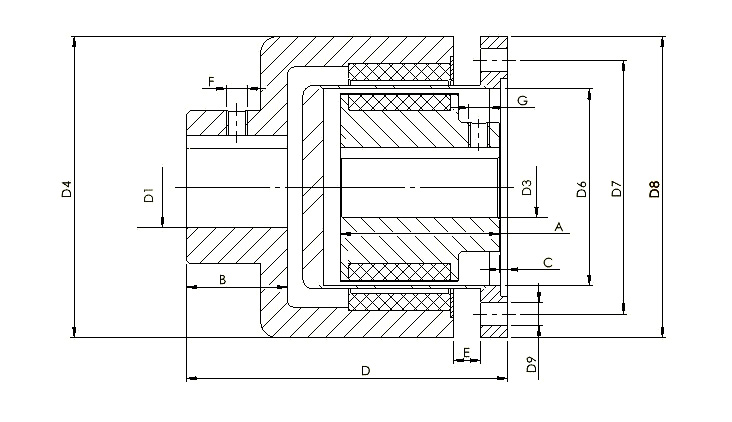

  		D3	A	G	D1	D4	B	F	D6	D7	D8	D9	C	D	E
  HCM-0.3	0.3	5	24	M4	5	44	14	M4	24	37	44	4.2X4	3.2	48	6
  HCM-1	1	5	30	M5	5	52	19	M5	30	46	55	4.7X4	5	63	10
  HCM-3	3	8	42	M5	5	60	20	M4	38	50	60	5.4X4	2	67	6
  HCM-5	5	15	40	M6	5	94	31	M6	58	92	112	11X8	8.5	101	15
  HCM-10	10	15	52	M5	9	89	39	M5	58	85	100	6.7X6	4	110	12
  HCM-16	16	15	57	M6	9	89	30	M6	58	75	89	6.7X4	2.5	105	8

  Note: Shaft hole: H7; Keyway: DIN6885(JS9)

• B Series



  Model	Torque(NM)	Dimensions(mm)
  		Inner rotor		Outer rotor				Isolation units				Other

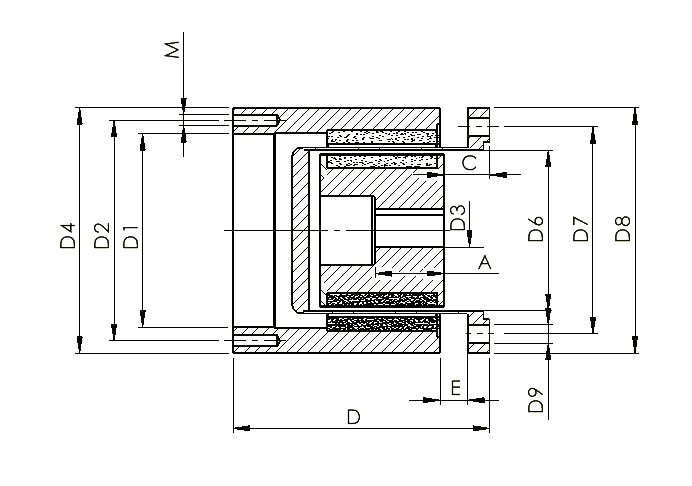

  		D3	A	D1	D2	D4	M	D6	D7	D8	D9	C	D	E
  HCM91	22/33/40	18	30	98	110	122	M8	91	116	132	6.6X8	17	110	10
  HCM105	62/80/100	25	45	153	164	174	M8	105	134	150	8.5X8	22.5	122	12
  HCM140	196/235/280	32	50	180	190	200	M8	140	172	198	8.5X8	17.5	129	12
  HCM190	315/400/540	45	65	208	220	232	M8	190	230	255	11X8	25.5	163	12
  HCM210	610/850/950	50	65	202	258	260	M8	210	232	258	11X8	34	218	12

• Flat Couplings



  Model	Torque(NM)	Dimensions(mm)

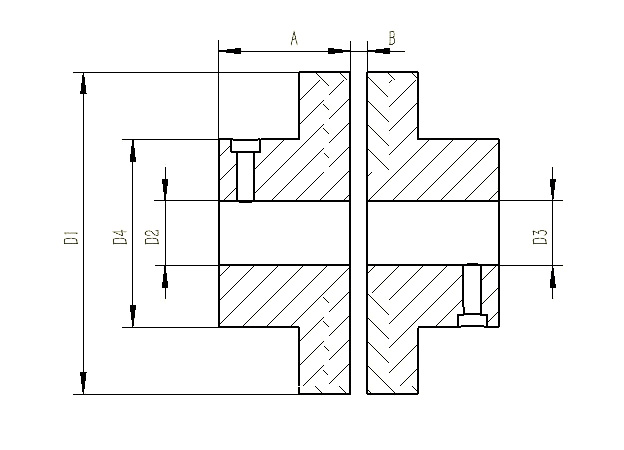

  		D1	D2	D3	D4	A	B
  HCP-0.3	0.3	45	5	5	20	20	4.8
  HCP-1	1	50	10	12	35	25	20
  HCP-8	8	110	14	22	70	32	6
  HCP-12	12	120	24	24	80	32	6.5
  HCP-20	20	130	24	24	80	45	6.5
  HCP-30	30	140	28	28	80	45	6.5
  HCP-40	40	150	38	42	100	50	6.5
  HCP-50	50	150	38	42	100	50	6.5
